Aeration Systems

---

High performance surface aerators dramatically push high volumes of water into the air. This process increases the overall health of your water and keeps it thoroughly mixed. These self-contained units deliver up to 3.0 lbs of O2 per horsepower per hour of operation, making Kasco surface aerators the most dependable and efficient units on the market.

Product Features

• Proven performance for continuous, supplemental or emergency use
• 1/2, 3/4 and 1HP sizes can easily by moved and installed by 1 person
• ETL listed as complete package to UL and CSA safety standards
• Power cord lengths available up to 500 ft.
• Power cords can be protected with a flex sleeve cord protector
• 2 year warranty on 1/2, 3/4 and 1HP
• 3 year warranty on 2, 3HP and 5HP
• Optional bottom screen and hardware
• Optional lighting package
• Control panels are optional for all single phase units
• Control panels are included for three phase units except “U” models

Package Includes

• Power cord
• Float and mounting hardware

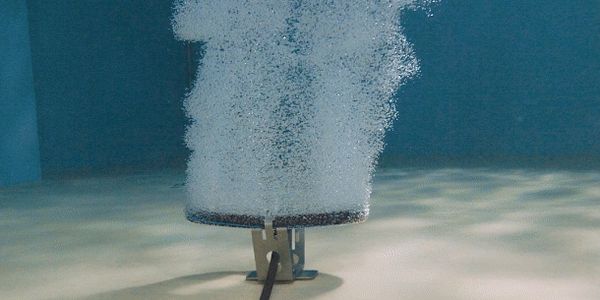

By pumping compressed air from a shore-mounted compressor, air is pushed through self-weighted lines to a diffuser on the pond, lake or tank bottom. The diffuser then continuously releases micro-bubbles that rise to the surface carrying large volumes of water. This induces oxygen-transfer as well as beneficial water movement and mixing.

All Robust-Aire™ diffused aeration systems are available with an optional remote manifold allowing you to install the compressor up to a mile away from the water’s edge.

Product Features

• Great for depths 8 ft. and deeper
• No electricity required in the water
• Speeds up organic decomposition
• Creates open water preventing ice damage
• Designed for continuous operation

Warranty

• Diffuser: 5 years
• Compressor: 2 years
• Cabinet: 5 years
• Tubing: 10 years

Package Includes

• Diffuser assembly
• SureSink™ self-weighted tubing
• Mounting option
• Compressor(s)

1/2 HP Package 120V - with 50 foot cord                              $1,273

3/4 HP Package 120V - with 50 foot cord                              $1,391

1 HP Package 120V - with 50 foot cord                                 $1,638

Cord lengths available from 50 feet to 200 feet

Packages also available that include floats and bottom screens

______________________________________________

3/4 HP Package 208-240V - with 50 foot cord                   $1,454

1 HP Package 208-240V - with 50 foot cord                      $1,658

2 HP Package 208-240V - with 50 foot cord                      $3,508

3 & 4 HP also available

Cord lengths available from 50 feet to 400 feet

Packages also available that include floats and bottom screens

__________________________________________________

Single Diffuser Assembly                                                         $2,818

• Small Cabinet
• 100 ft. 3/8" tubing
• 1/4 HP Compressor
• 120V or 208-240V available

Double Diffuser Assembly                                                      $3,531

• Small Cabinet
• 200 ft. 3/8" tubing
• 1/4 HP Compressor
• 120V or 208-240V available

Also available with no cabinet or base mount cabinet

Remote manifold available

3 - 6 diffuser assemblies also available

_______________________________________________

2 HP Package 208-240V- with 50 foot cord                     $4,732

3 HP Package 208-240V - with 50 foot cord                    $5,482

5 HP Package 208-240V - with 100 foot cord                  $5,939

 Cord lengths available from 50 feet to 500 feet

Control Panel Not Included

 Packages also available that include floats and bottom screens
